Integrator Circuit

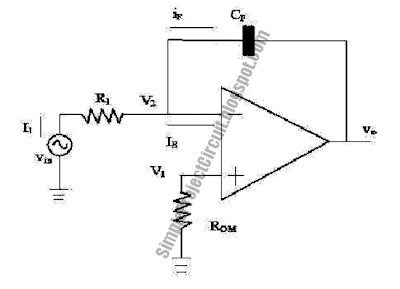

Integrator op-amp this circuit also comes from inverting circuit with the feedback prisoner is changed with capacitor. This is the figure of the Integrator Circuit.
Usually circuit for application there are addition of parallel prisoner with capacitor with name of RF. Integrator circuit which has not in adding parallel prisoner with capacitor. ROM Value is between zero up to R1.
